Products: Abaqus/Standard Abaqus/Explicit
The “modified Cam-clay theory” is a classical plasticity model. It uses a strain-rate decomposition in which the rate of mechanical deformation of the soil is decomposed into an elastic and a plastic part, an elasticity theory, a yield surface, a flow rule, and a hardening rule.
These various parts of the theory are defined in this section. The model is implemented numerically using backward Euler integration of the flow rule and hardening rule: this approach is used throughout Abaqus for plasticity models.
The inelastic constitutive theory provided in Abaqus/Standard for modeling cohesionless materials is based on the critical state plasticity theory developed by Roscoe and his colleagues at Cambridge (Schofield et al., 1968, and Parry, 1972). The specific model implemented is an extension of the modified Cam-clay theory. The discussion is entirely in terms of effective stress: the soil may be saturated with a permeating fluid that carries a pressure stress and is assumed to flow according to Darcy's law. The continuum theory of this two phase material is described in “Continuity statement for the wetting liquid phase in a porous medium,” Section 2.8.4.
The basic ideas of the Cam-clay model are shown geometrically in Figure 4.4.3–1 to Figure 4.4.3–7. The main features of the model are the use of an elastic model (either linear elasticity or the porous elasticity model, which exhibits an increasing bulk elastic stiffness as the material undergoes compression) and for the inelastic part of the deformation a particular form of yield surface with associated flow and a hardening rule that allows the yield surface to grow or shrink.

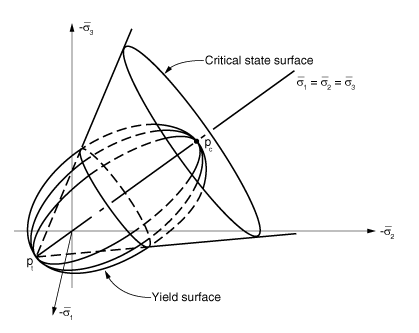

A key feature of the model is the hardening/softening concept, which is developed around the introduction of a “critical state” surface: the locus of effective stress states where unrestricted, purely deviatoric, plastic flow of the soil skeleton occurs under constant effective stress. This critical state surface is assumed to be a cone in the space of principal effective stress (Figure 4.4.3–1) whose axis is the equivalent pressure stress, p.
The section of the surface in the
-plane (the plane in principal stress space orthogonal to the equivalent pressure stress axis) is circular in the original form of the critical state model: in Abaqus this has been extended to the more general shape shown in Figure 4.4.3–5. In the section of effective stress space defined by the equivalent pressure stress, p, and a measure of equivalent deviatoric stress,
(the definition of is given later in this section), the critical state surface appears as a straight line, intersecting the pressure axis at
(strength of the material in hydrostatic tension), with slope M (see Figure 4.4.3–2 and Figure 4.4.3–3). The modified Cam-clay yield surface has the same shape in the -plane as the critical state surface, but in the
–

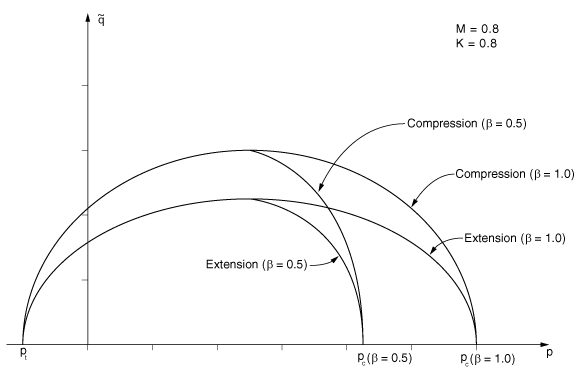

plane it is assumed to be made up of two elliptic arcs: one arc passes through with its tangent at right angles to the pressure stress axis and intersects the critical state line where its tangent is parallel to the pressure stress axis, while the other arc is a smooth continuation of the first arc through the critical state line and intersects the pressure stress axis at some nonzero value of pressure stress (
), again with its tangent at right angles to that axis (see Figure 4.4.3–4). Plastic flow is assumed to occur normal to this surface.The hardening/softening assumption controls the size of the yield surface in effective stress space. The hardening/softening is assumed to depend only on the volumetric plastic strain component and is such that, when the volumetric plastic strain is compressive (that is, when the soil skeleton is compacted), the yield surface grows in size, while inelastic increase in the volume of the soil skeleton causes the yield surface to shrink. The choice of elliptical arcs for the yield surface in the (
) plane, together with the associated flow assumption, thus causes softening of the material for yielding states where
(to the left of the critical state line in Figure 4.4.3–2, the “dry” side of critical state) and hardening of the material for yielding states where
(to the right of the critical state line in Figure 4.4.3–3, the “wet” side of critical state).
The volume change is decomposed as
where J is the ratio of current volume to original volume,
is the ratio of current to original volume of the soil grain particles,
is the elastic (recoverable) part of the ratio of current to original volume of the soil volume, and
is the plastic (nonrecoverable) part of the ratio of current to original volume of the soil volume.Volumetric strains are defined as
These definitions and Equation 4.4.3–1 result in the usual additive strain rate decomposition for volumetric strain rates:
The model also assumes the deviatoric strain rates decompose in an additive manner, so the total strain rates decompose as
is a unit matrix.The elastic behavior can be modeled as linear or by using the porous elasticity model, typically with a zero tensile strength, as described in “Porous elasticity,” Section 4.4.1.
The modified Cam-clay yield function is defined in terms of the equivalent effective pressure stress, p, and the Hill's potential,
, as
and N are constants (see “Anisotropic yield/creep,” Section 23.2.6 of the Abaqus Analysis User's Guide).The surface is
In this equation
is a user-specified constant that can be a function of temperature
and other predefined field variables
.This constant is used to modify the shape of the yield surface on the wet side of critical state, so the elliptic arc on the wet side of critical state has a different curvature from the elliptic arc used on the dry side:
on the dry side of critical state, while
in most cases on the wet side, as shown in Figure 4.4.3–4.
is a measure of the size of the yield surface.
is the slope of the critical state line in the
– plane (the ratio of to at critical state); and
is the deviatoric polar angle defined as
. The Mises equivalent stress is
is a user-defined constant. If
, the yield surface does not depend on the third stress invariant, and the -plane section of the yield surface is a circle: this choice gives the original form of the Cam-clay model. The effect of different values of K on the shape of the yield surface in the -plane is shown in Figure 4.4.3–5. To ensure convexity of the yield surface,
.Figure 4.4.3–5 Isotropic cam-clay surfaces in the deviatoric plane (
and
for isotropic yield function).
Associated flow is used with the modified Cam-clay plasticity model. The evolution of the yield surface could have either an exponential form (in Abaqus/Standard only) or a piecewise linear form.
It is observed experimentally that, during plastic deformation,
is a constant. Integrating this equation and using Equation 4.4.3–1, Equation 4.4.1–2, and Equation 4.4.1–4, we obtainwhere
defines the position of a at the beginning of the analysis—the initial overconsolidation of the material. The value of can be specified directly by the user or can be computed as
is the initial value of the equivalent pressure stress and
is the intercept of the virgin consolidation line with the void ratio axis in a plot of void ratio versus equivalent pressure stress, shown in Figure 4.4.3–6.The evolution of the yield surface can alternatively be defined as a piecewise linear function relating the yield stress in hydrostatic compression, , and, optionally, the yield stress in hydrostatic tension, , with the corresponding volumetric plastic strain
(Figure 4.4.3–7):
is the position on this axis corresponding to the initial state of the material, thus defining the initial hydrostatic pressure in compression,
and tension,
and, hence, the initial yield surface size, .Abaqus checks that the initial effective stress state lies inside or on the initial yield surface. At any material point where the yield function is violated, is adjusted so that Equation 4.4.3–3 is satisfied exactly (and, hence, the initial stress state lies on the yield surface).
